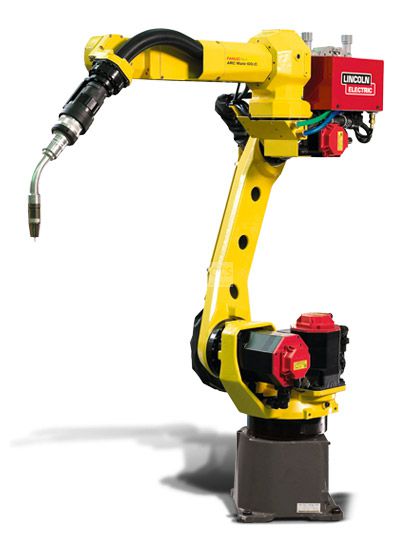

Fanuc ARC Mate 100iC/12

Awaiting more stock

ARC Mate 100iC / 12 is characterized by its versatility and profitability in the application of arc welding and high speed cutting without making changes in the mechanical unit; Occupying a minimum space but with a large work area. This model comes with protection on the torch cables from the wire feeder to the torch to reduce wear and reduce wire feeder problems.

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 12 Kg
Number of axis: 6
Maximum horizontal reach: 1420 mm
Repeatability:  ± 0.08
Controller: 30iB

Motion range (°)

Axis 1: 360°
Axis 2: 250°
Axis 3: 447°
Axis 4: 380°
Axis 5: 380°
Axis 6: 720°

Maximum speed (°/s)

Axis 1: 230°/s
Axis 2: 225°/s
Axis 3: 230°/s
Axis 4: 430°/s
Axis 5: 430°/s
Axis 6: 630°/s

Robot applications

Arc welding
Cutting
assembly

Funções

Soldagem a arco , Montagem de peças
