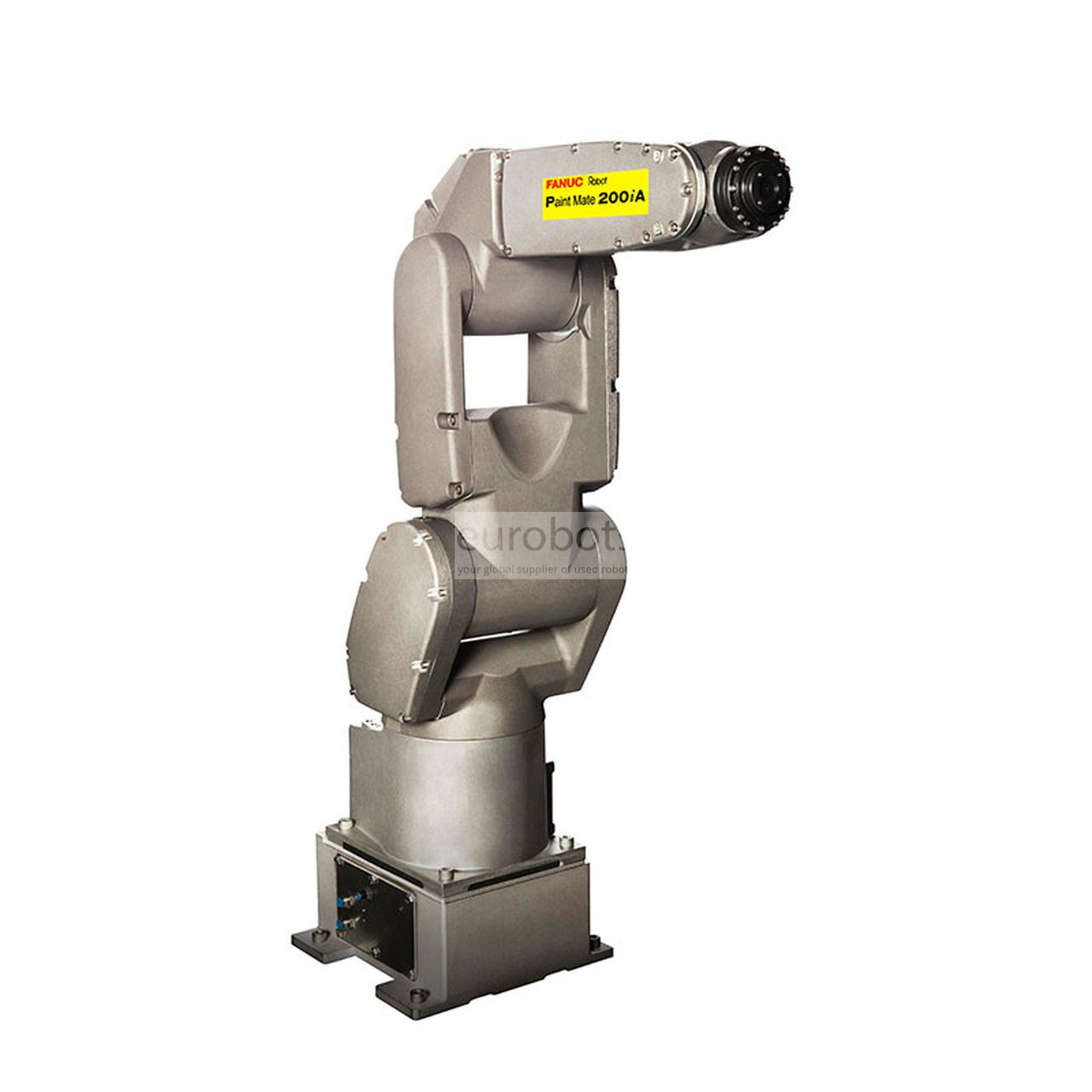

Fanuc Paint Mate 200iA

Awaiting more stock

Paint Mate 200iA Industrial 6-axis robot that makes it a versatile state-of-the-art design with sealed bearings and brushless AC motors as well as purged and pressurized cavities for easy maintenance. It offers a variety of mounting positions ideal for coating, painting and spraying applications in different industry sectors and hazardous environments, one of the fastest robots in the LR Mate series. FANUC PAINT TOOL application software With built-in paint function controls, it makes it easy to set up single or multiple robot systems. Also comes in the long range version of 892 mm Paint Mate 200iA / 5L.

R-30iB control system
Latest generation of efficient, compact and stackable FANUC advanced technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With intuitive iPendant Touch, more intelligent and easy to use.
Main specifications

Maximum Load of Robot: 5 Kg
Number of axis: 6
Maximum horizontal reach: 704 mm
Repeatability: ± 0.2 mm
Controller: R-30iB

Motion range (°)

Axis 1: 340°
Axis 2: 200°
Axis 3: 388°
Axis 4: 380°
Axis 5: 240°
Axis 6: 720°

Maximum speed (°/s)

Axis 1: 350°/s
Axis 2: 350°/s
Axis 3: 400°/s
Axis 4: 450°/s
Axis 5: 450°/s
Axis 6: 720°/s

Robot Applications

Painting
Coating
Assembly
Handling
Dosed
Removal of material

Funções

Pintura , Montagem de peças
