ABB IRB1400 célula do robô gêmeo Flexarc M97A S4C com MTB 750 IRBP 750K posicionador

Awaiting more stock

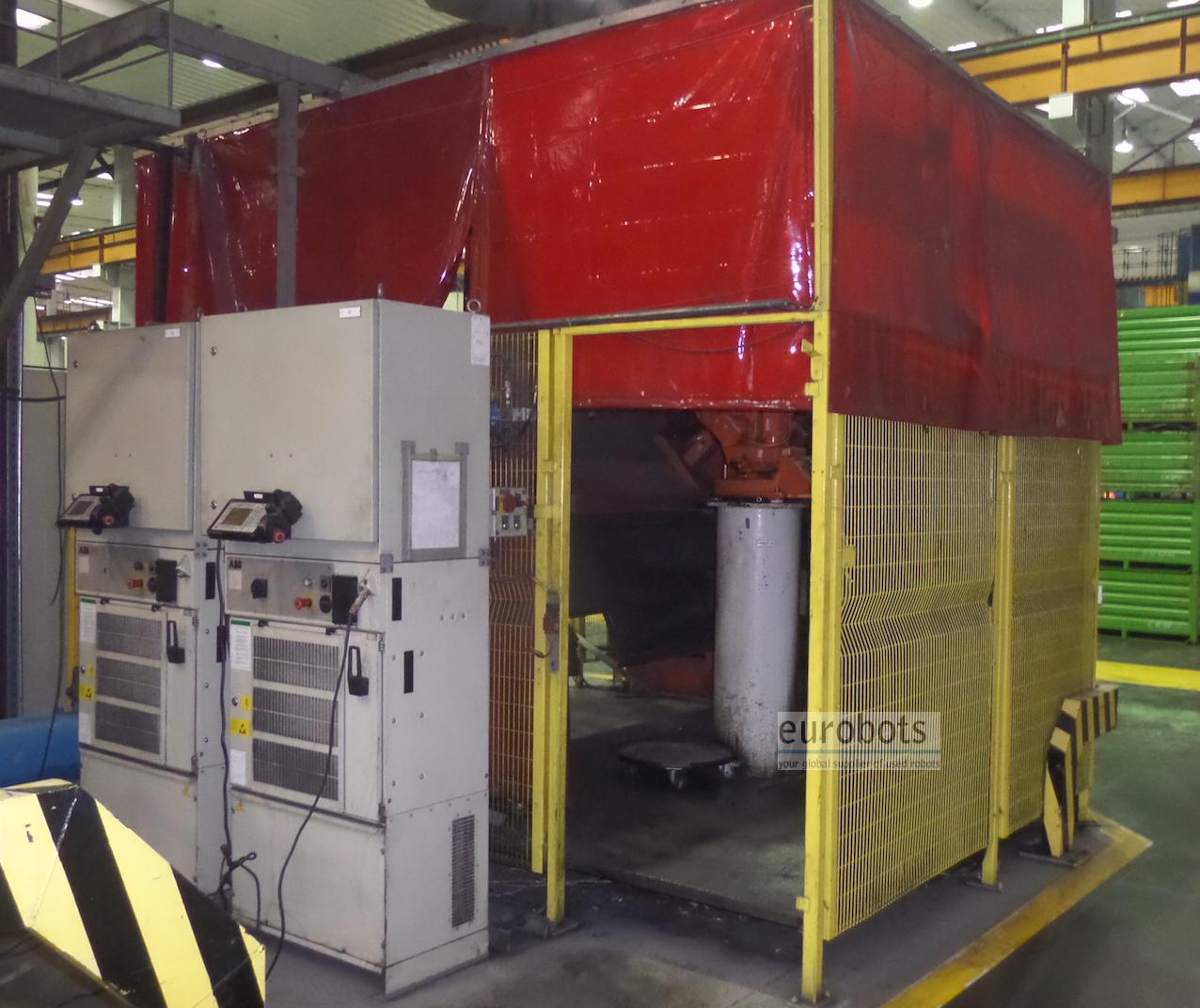

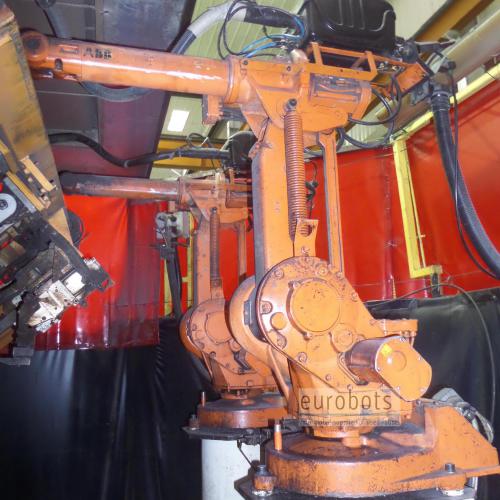

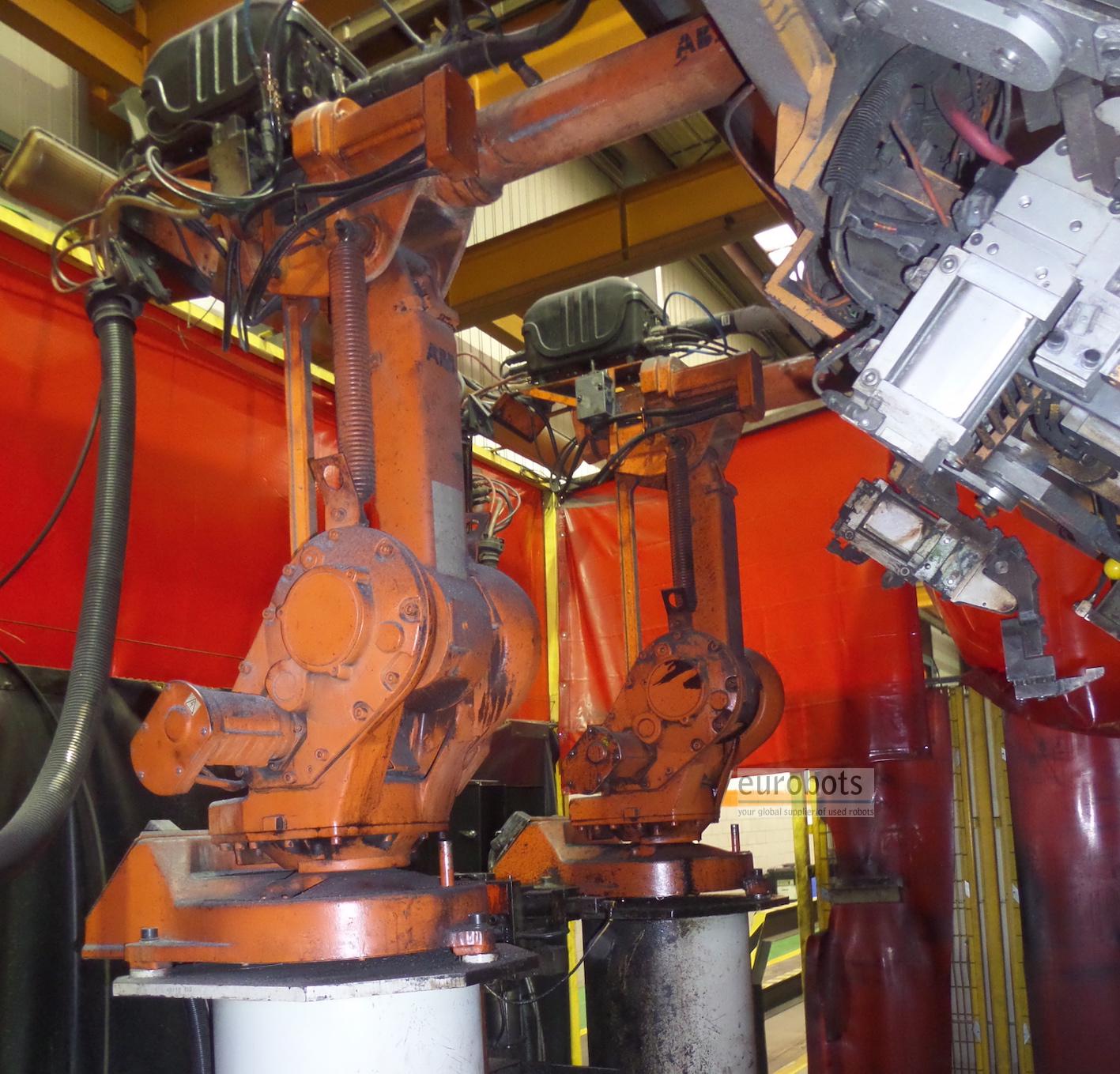

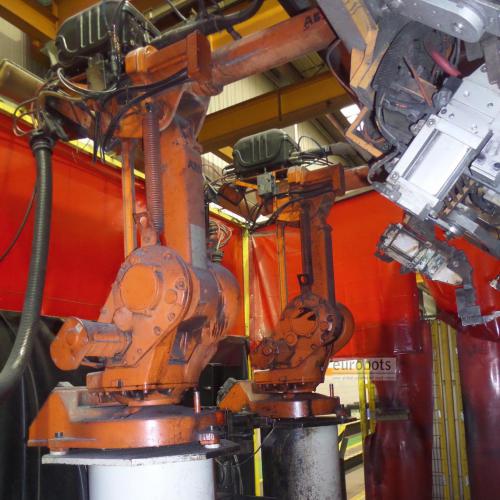

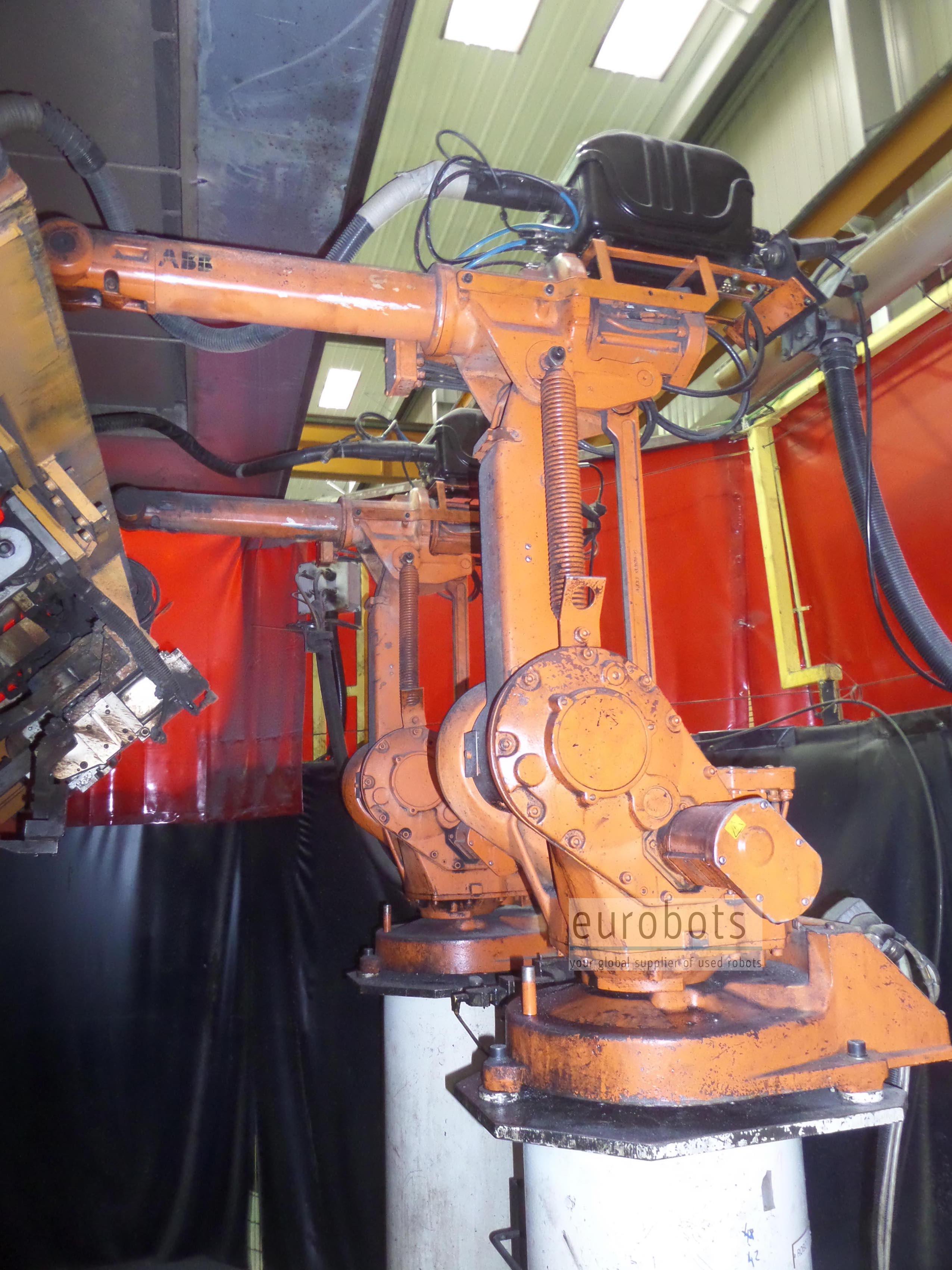

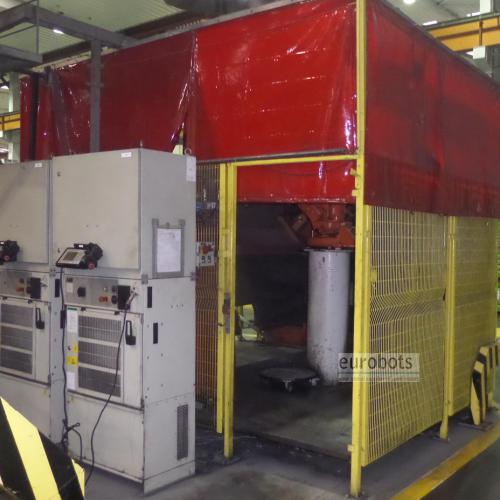

ABB genuine Flexarc welding cell consisting of:

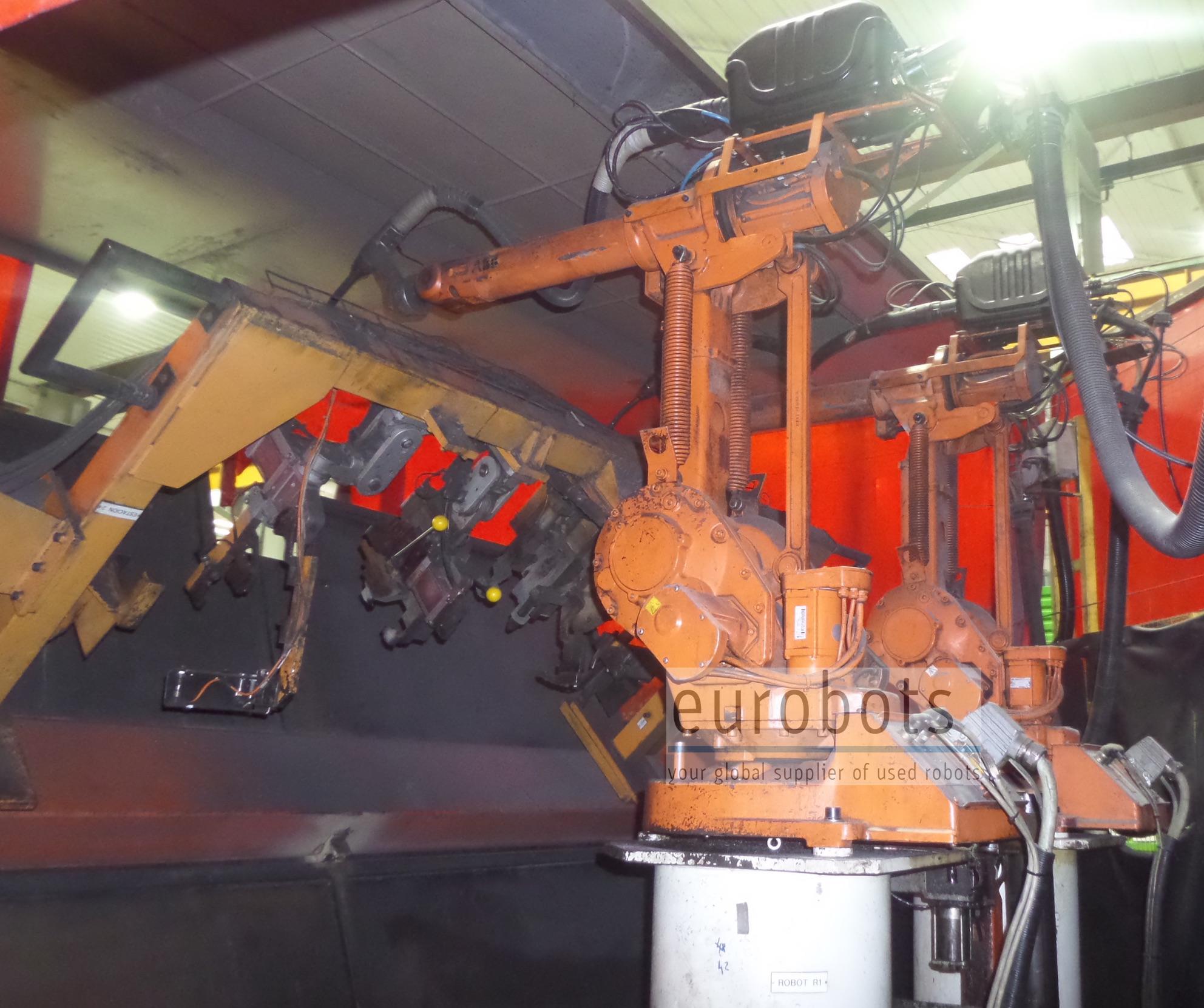

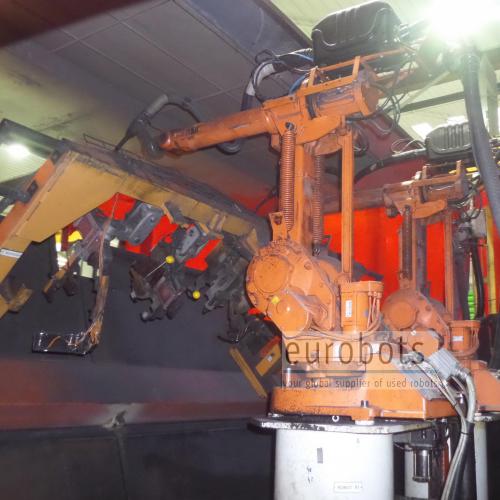

- 2 x IRB1400M97A 6 axis robot with S4C controller, 1,5 m arm reach and 6 kg payload. One of the robots masters the second one as salve

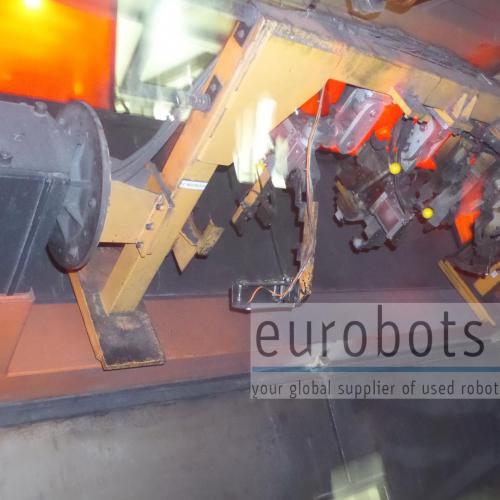

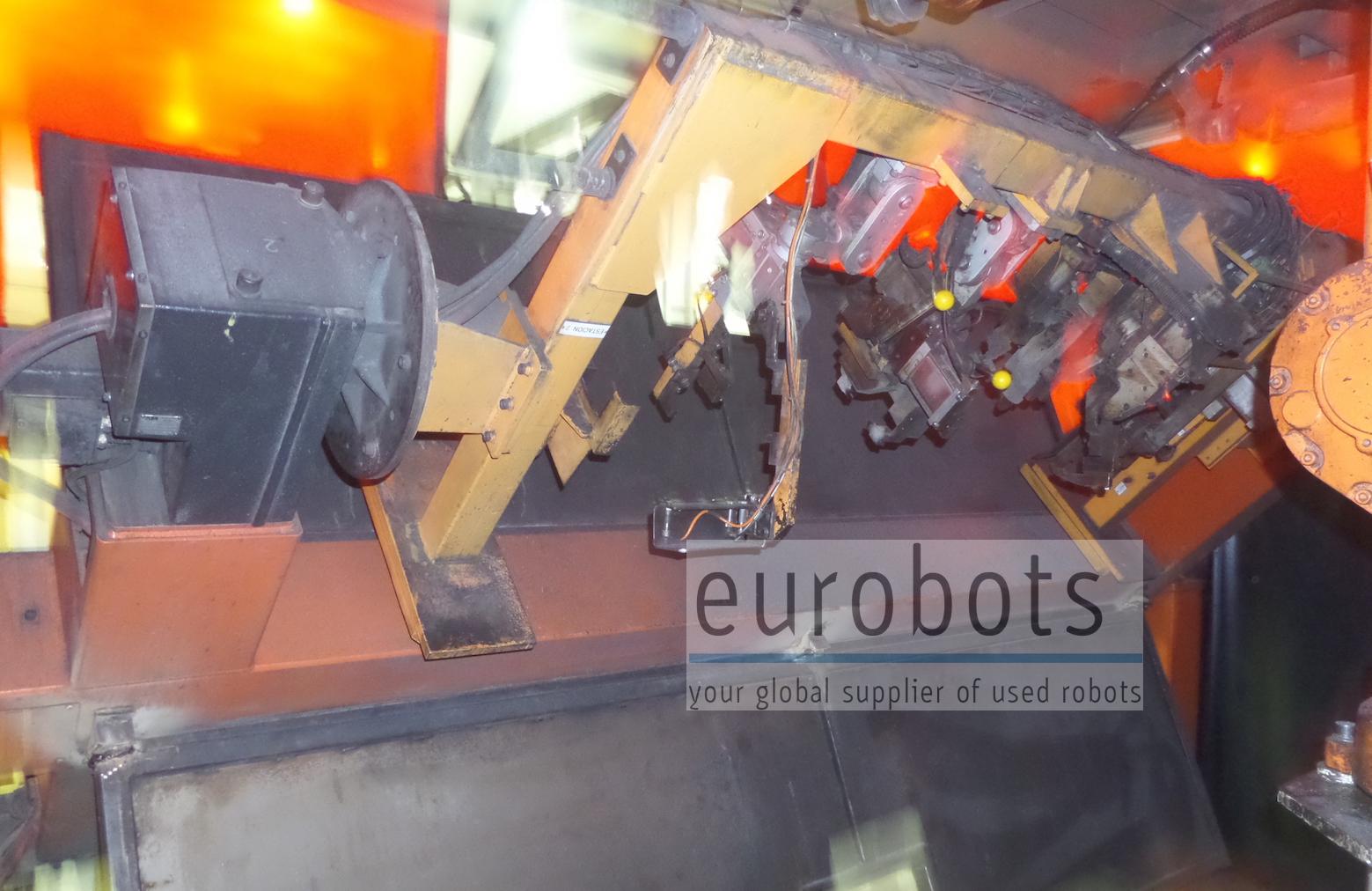

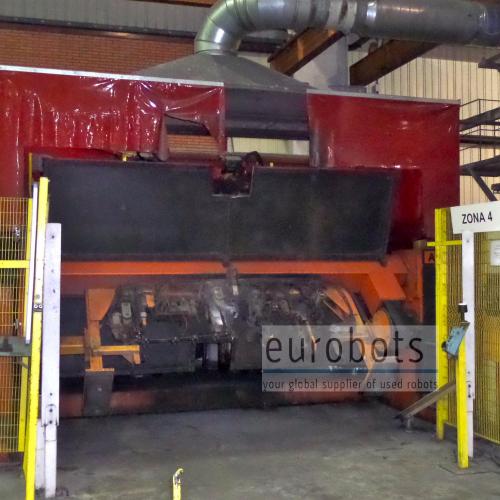

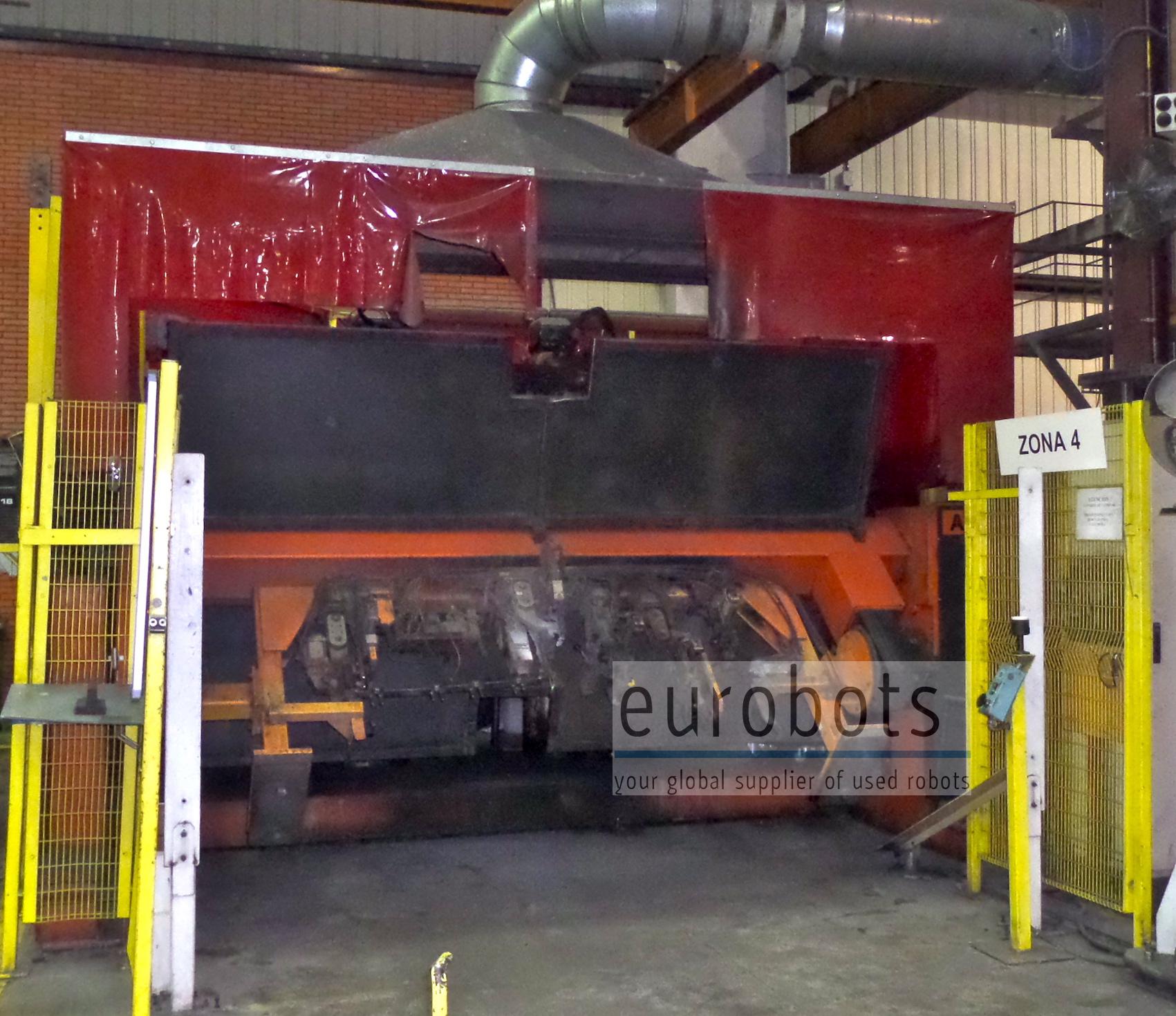

- 1 x IRBP 750K welding positioner H shape (automatic load and unloading station), 750 kg and 3 m between head and tail
- 2 x ESAB Mig/MAg incorporated power source Arcitec LRA 400 (400 Amperes Porwer), wire feeder and welding torch with anticollision
- 1 x Bull's eye torch correction system
- Torch cleaning station



General specifications

  • Number of axis: 6
  • Maximum load of robot: 5 Kg

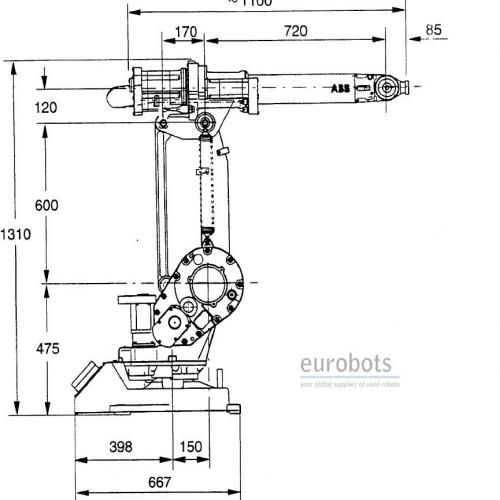

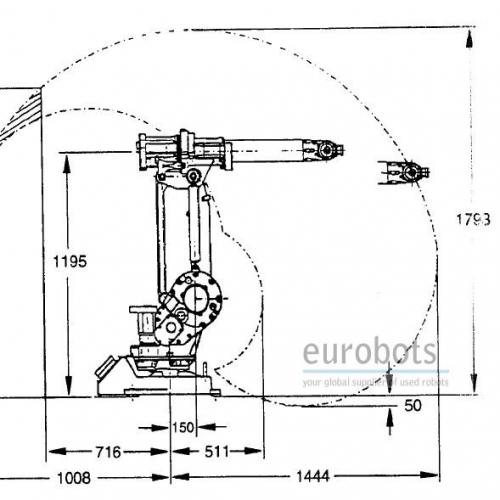

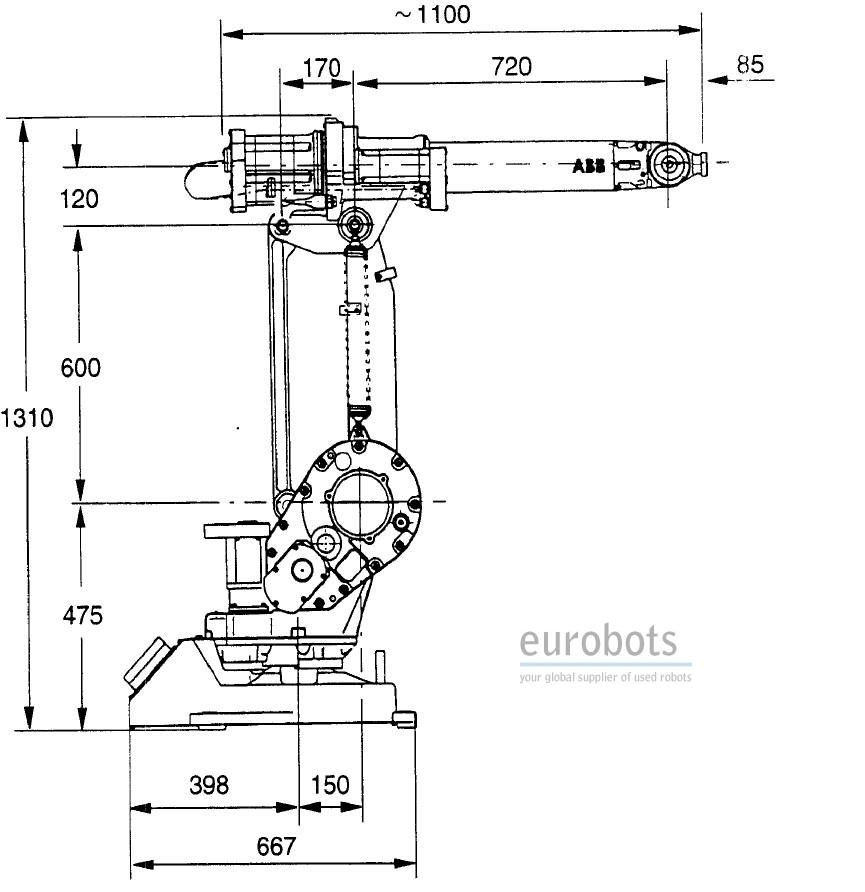

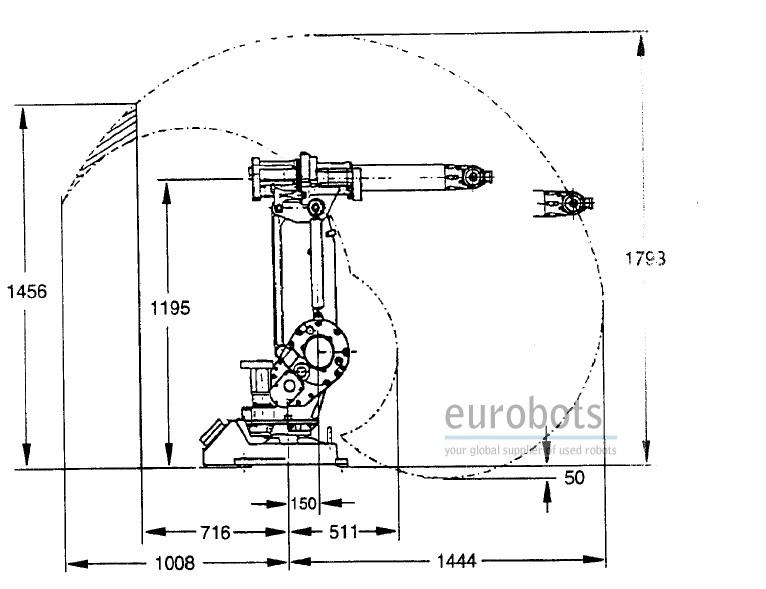

  • Maximum horizontal reach: 1440 mm
  • Repeatability: 0.05 mm
  • Controller: M97A-M98A-M99 S4C

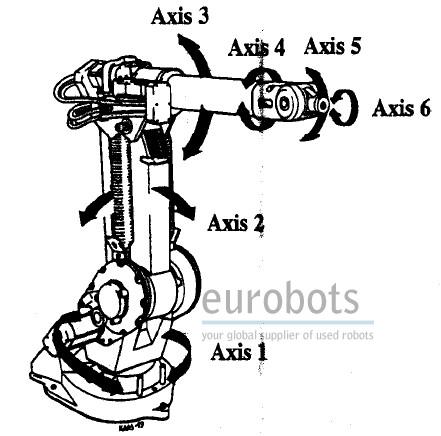

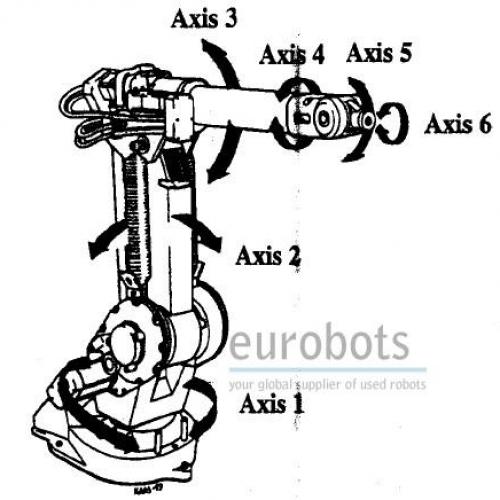

Robot motion speed

  • Axis 1: 110º/s
  • Axis 2: 110º/s
  • Axis 3: 110º/s
  • Axis 4: 280º/s
  • Axis 5: 280º/s
  • Axis 6: 280º/s

Robot Applications

  • Arc welding

Funções

Soldagem a arco
